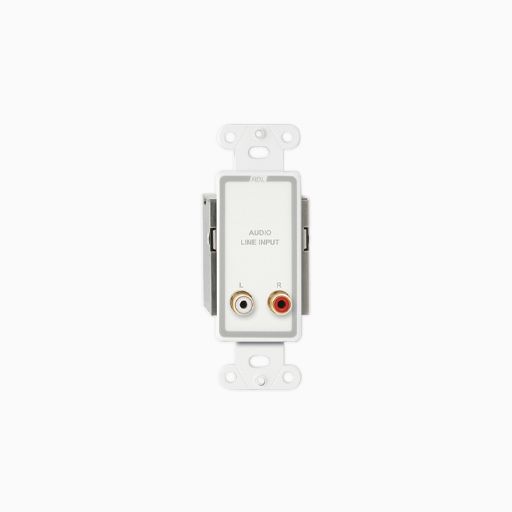

The -TPS6A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel features two gold plated phono jacks intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE.

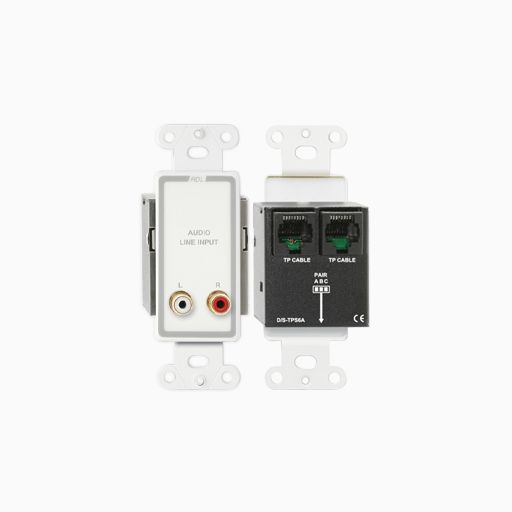

The -TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders.
Main Features
Stereo Audio Input Combined to Mono Output
Input on Dual RCA Jacks
Switch Selects which RJ45 Pair (A, B or C) is Fed
Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
Passive Circuitry Does Not Require Power
Galvanic Isolation through a Studio-Quality Transformer
Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
