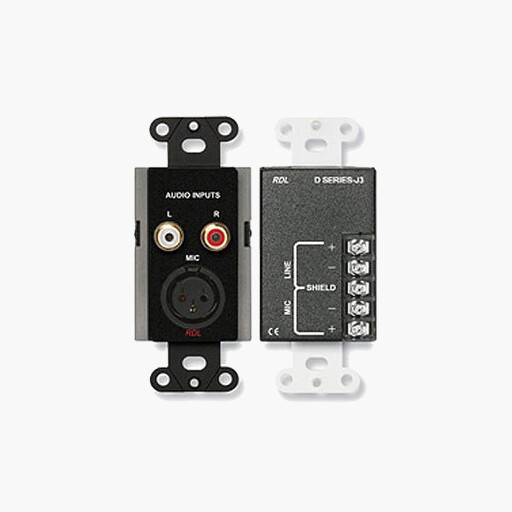

The D SERIES-J3 is a complete audio input panel assembly. The front panel features a female XLR jack and two phono jacks. The XLR is connected directly to the rear-panel barrier block. The phono jacks are intended for mono or stereo consumer level sources.
LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 k? or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3 is finished with a metal enclosure clearly labeled for easy installation.
Main Features
Wall Mounted Audio Inputs
XLR Microphone Input with Gold Contacts
Gold Plated Phono Jack Line Inputs
Hum Cancellation on Unbalanced Line Inputs
Transformer Isolation for Unbalanced Line Inputs
Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs
