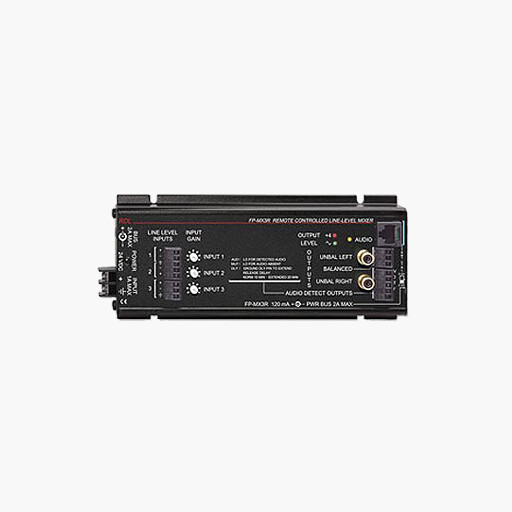

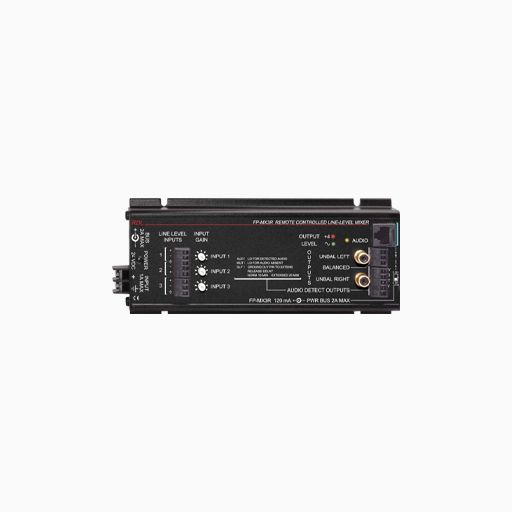

The FP-MX3R is the ideal choice where a user-accessible mixer must control the volume of multiple sources. The mixer accepts balanced or unbalanced audio sources through a detachable terminal block. FP-MX3R outputs are provided in balanced and unbalanced formats.
Two unbalanced outputs are available to feed the mono mixer output to a stereo amplifier input. Remote control of the mixer allows audio signals to be kept at a single equipment location. Audio is mixed by VCA circuits that are adjusted by control signals from the remote control.
Main Features
3-Channel Remote-Controlled Audio Mixer
VCA Level Control for Each Input
Balanced or Unbalanced Inputs
Balanced and Unbalanced Outputs
Two Mono Unbalanced Outputs to Feed Stereo Amplifier
Inputs and Outputs on Detachable Connectors
Twisted Pair Interconnection to Remote Control
Directly Controlled by RDL Remote Controls with 2 or 3 channels
Fixed Level Possible for Input 3 if Two Channel Remote Used
