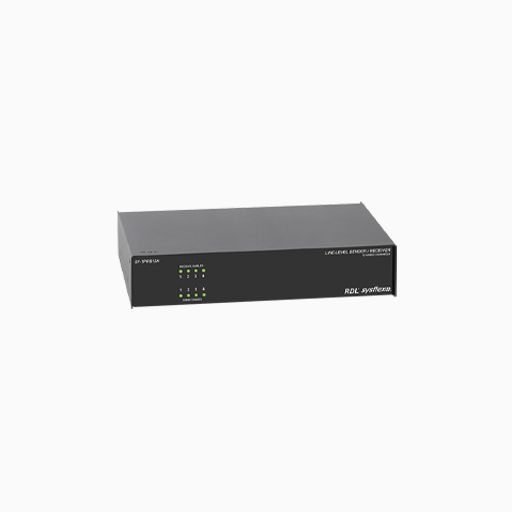

The SF-TPR24A is an eight-section audio receiving chassis compatible with RDL Format-A twisted pair products. Each section receives up to three audio sources and provides three outputs corresponding to signal pairs A, B and C.
A studio-quality buffer amplifier feeds +4 dBu balanced outputs through a detachable terminal block, the SF-TPR24A features bridging inputs, allowing it to be connected to the LOOP OUT jack of other receivers.
Includes
Eight Separate Three-Pair Format-A Receiver Sections
Receives up to 24 Audio Channels
Three +4 dBu Balanced Outputs per Section
Detachable Terminal Block Outputs
Audio Outputs for All Three Pairs (A, B and C) per Section
Local Power Feeds all Modules Connected to INPUTs
Wiring Fault Protection by Automatic Resetting Fuse
Local Power Input on Terminal Block or dc Power Jack
Green LED per Section Indicates Validity of Module Remote Power
Studio-Quality Precision Active Balanced Circuitry
