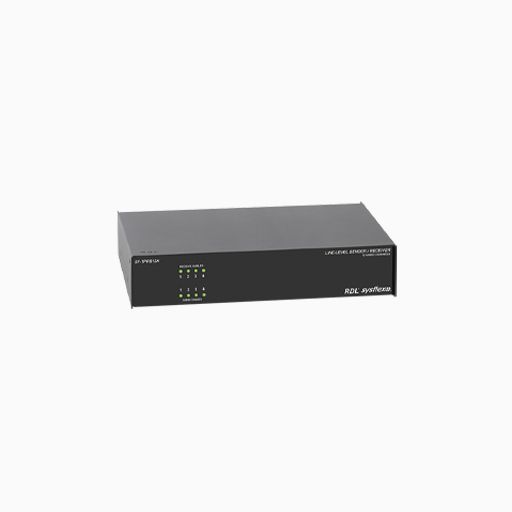

The SF-TPS24A is an eight-section audio sending chassis compatible with RDL Format-A twisted pair products. Three +4 dBu balanced line-level sources may be connected to each section on a detachable terminal block.
That section converts and transmits those signals on pairs A, B and C of the associated RJ45 connector, the SF-TPS24A feeds all three signal pairs in the twisted pair cable. No other sending modules may be connected on the same cable with each RJ45 output.
Includes
Eight Separate Three-Pair Format-A Sender Sections
Sends up to 24 Audio Channels
Three +4 dBu Balanced Inputs per Section
Detachable Terminal Block Inputs
Audio Inputs to Feed Pairs A, B and C per Section
Utilizes All Three Format-A Pairs
Local Power Feeds all Modules Connected to OUTPUTs
Wiring Fault Protection by Automatic Resetting Fuse
Local Power Input on Terminal Block or dc Power Jack
Green LED per Section Indicates Validity of Module Remote Power
