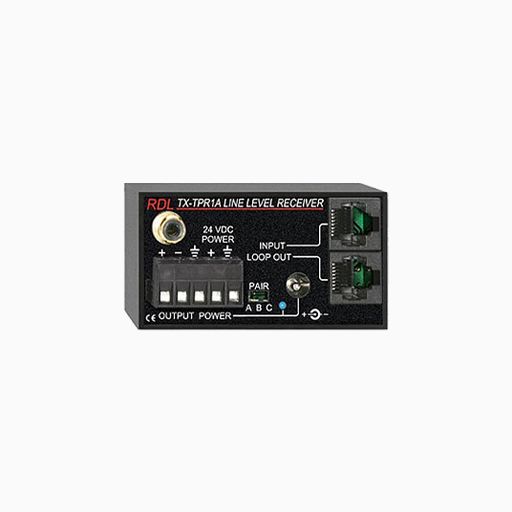

The TX-TPR1A is a single-pair audio receiving module compatible with RDL Format-A twisted pair products. A front-panel switch set during installation determines which of the three FORMAT-A pairs is buffered to feed the module output.
The audio signal received from the selected pair of the RJ45 INPUT jack feeds the -10 dBV unbalanced RCA phono jack output and the +4 dBu balanced detachable terminal block output. A studio-quality buffer amplifier feeds the outputs at the correct operating level.
Includes
Single -10 dBV Unbalanced or +4 dBu Balanced Output
Phono Jack and Detachable Terminal Block Outputs
Switch Selects which Pair (A, B or C) Feeds the Output
Signal and Power Pair Pass-Through to LOOP OUT Jack
Powered Locally or Remotely through RJ45 Jack
Fused Local Power Feeds all Modules Connected to RJ45s
Local Power Input on Terminal Block or dc Power Jack
Blue LED Indicates Module is Powered
Daisy-Chain with Additional Format-A Receivers
Studio-Quality Precision Active Balanced Circuitry
