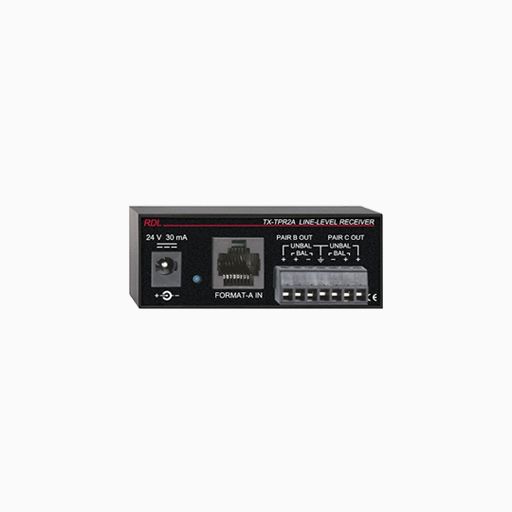

The TX-TPR2A is a two-pair audio receiving module compatible with RDL Format-A twisted pair products. Two outputs are provided corresponding to the two signal pairs B and C. The audio signal received on each pair of the RJ45 INPUT jack feeds the corresponding -10 dBV unbalanced output and the +4 dBu balanced output on the detachable terminal block.
The TX-TPR2A features bridging inputs, allowing it to be connected to the LOOP OUT jack of other receivers. The bridging input circuits used in all FORMAT-A twisted pair receivers allow connection of up to 10 receiver outputs for each cable pair. The possibility of multiple receiver locations adds enormous flexibility in the design of audio routing systems using RDL FORMAT-A products.
Includes
Two -10 dBV Unbalanced or +4 dBu Balanced Outputs
Detachable Terminal Block Outputs
Audio Outputs for Two Pairs (B and C)
Powered Locally or Remotely through RJ45 Jack
Local Power Feeds all Modules Connected to RJ45
Wiring Fault Protection by Automatic Resetting Fuse
Local Power Input on dc Power Jack
Blue LED Indicates Module is Powered
Studio-Quality Precision Active Balanced Circuitry
