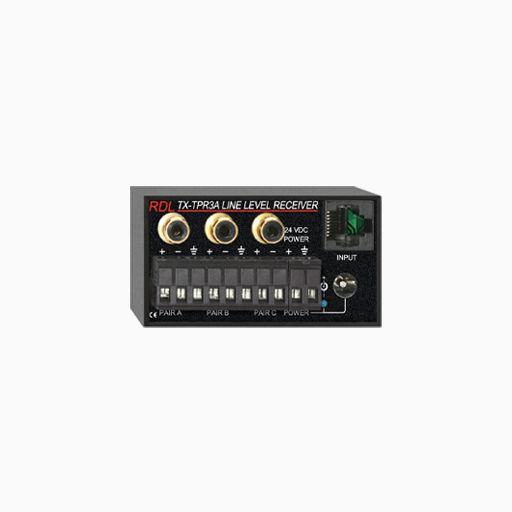

The TX-TPR3A is a three-pair audio receiving module compatible with RDL Format-A twisted pair products. Three outputs are provided corresponding to the three signal pairs A, B and C. The audio signal received on each pair of the RJ45 INPUT jack feeds the corresponding -10 dBV unbalanced RCA phono jack output and the +4 dBu balanced detachable terminal block output.
A studio-quality buffer amplifier feeds the outputs at the correct operating level. The TX-TPR3A features bridging inputs, allowing it to be connected to the LOOP OUT jack of other receivers.
Includes
Three -10 dBV Unbalanced or +4 dBu Balanced Outputs
Phono Jack and Detachable Terminal Block Outputs
Audio Outputs for All Three Pairs (A, B and C)
Utilizes All Three Format-A Pairs
Powered Locally or Remotely through RJ45 Jack
Local Power Feeds all Modules Connected to INPUT
Wiring Fault Protection by Automatic Resetting Fuse
Local Power Input on Terminal Block or dc Power Jack
Blue LED Indicates Module is Powered
Studio-Quality Precision Active Balanced Circuitry
