Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution ™
Series inverter/chargers provide reliable AC power wherever it’s needed.

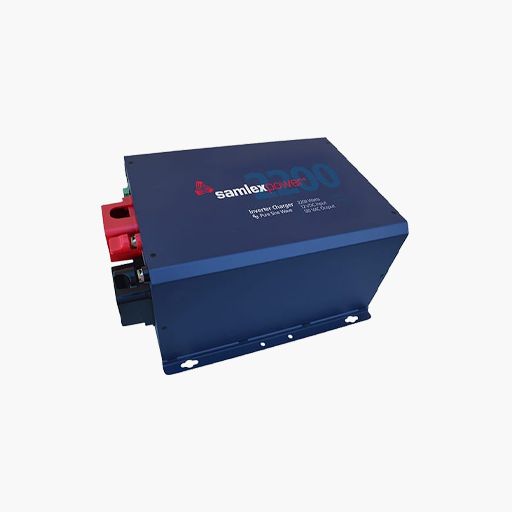

For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications. The EVO-2212 is a 2200 Watt Pure Sine inverter, 12 VDC input, 120 VAC output, 50/60 Hz.
Main Features
Two separate AC inputs – one for grid (priority #1), one for generator (priority #2), connect simultaneously, no need to reconfigure when different power sources are available
Each AC input is programmable for voltage and frequency. User determines what the min and max thresholds are to switch from Grid or Generator to Inverter
Generator start can be initiated by “Status Relay” contact, can be programmed to activate when grid is lost
Connect a solar charge controller directly to the EVO TM
through the Battery Charger external DC Input, seamlessly integrates solar charging into the EVO’s power system
Zero transfer time when switching from Inverter to Grid. When grid comes on, the inverter synchronizes with the wave form and then transfers instantly at zero crossing
The EVO TM
operates at 165 million instructions per second producing lightning fast load and response times
The EVO TM
uses five temperature sensors placed throughout the unit to determine operation of 2 speed controlled cooling fans
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
