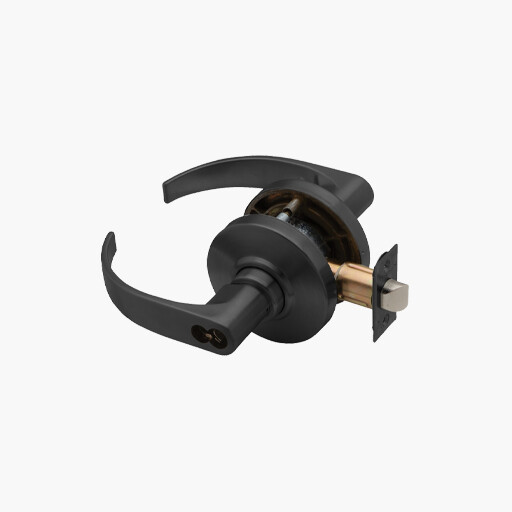

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications. The locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
The electrified ND is ideally used in high traffic areas, where line power ensures continuous operation, and in new construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building.
Main Features
Auto-detecting 12-24VDC input
Low 0.23 amp max current draw that allows multiple locks on a single power supply
Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
Modular Request to Exit (RX) that can be added at any time
Inventory friendly–one lock supports 12-24V
The outside lever is continuously locked until unlocked by a key or electric current
Auxiliary latch deadlocks latch bolt when the door is closed
The inside lever is always free for immediate exit
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
