The TSB Touch Sense Bar provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers and electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
Main Features
Can be field cut to accommodate non-standard openings up to 48"
Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer

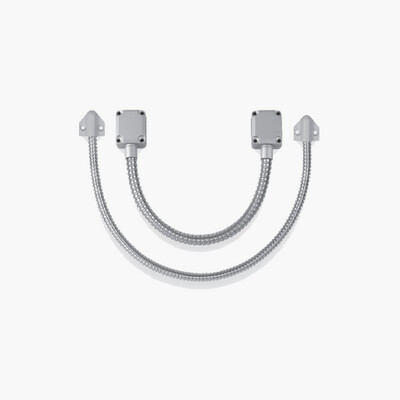

16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
Backup push button
Operates on either 12 or 24VDC
Available ElectroLynx™ ready
MagnaCare® lifetime replacement, no fault warranty
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
