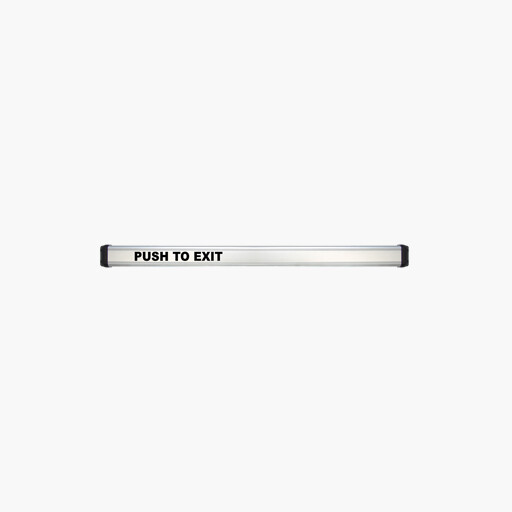

The Electromechanical Exit Bar (EMB) is designed for use on magnetically locked, non-fire-rated doors - or as an initiate device for a delayed egress timer. Pushing the bar activates internal switches which release the lock. Optional water resistant switches are available which allows the EMB to function in outdoor applications.
Main Features
Low profile design requires only 1/4" movement for activation
Three standard lengths: 36", 42" or 48"
Can be field cut to accommodate non-standard openings up to 48"
Uses same mounting pattern as the TSB-3 and DSB
Retrofits to most competitors mounting patterns
Activates a DPDT 5 Amp rated output when pushed which will allow free egress or initiate the delay on an exit delay timer
Four individual switches ensure reliable, redundant operation
All metal construction
16 ft [4.8m] 22AWG 6 conductor cable and armored door cord included
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
