Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1600 pass-through RJ45 modular plugs incorporate the following features: Single Piece Design.

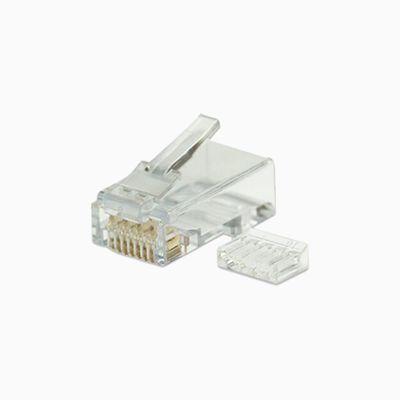

The S45-1600 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat6; ISO/IEC 11801 Class E.
Main Features
UL listed, RoHS, and FCC Compliant
Color coded for easy plug identification
Superior connectivity performance
Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
23 AWG : 0.95 mm - 1.05 mm (0.037” - 0.041”)
Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
