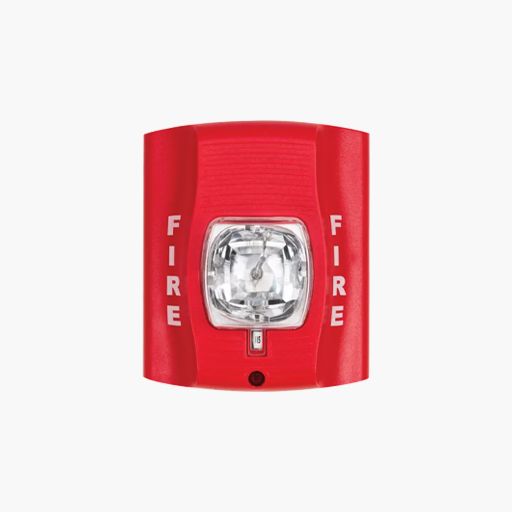

SpectrAlert® Advance 4-wire horn strobes are designed to simplify your installations, with features such as plug-in designs, instant feedback messages to ensure correct installation of individual devices, and11 field-selectable candela settings for wall and ceiling strobes and horn/strobes.
When installing Advance products, first attach a universal mounting plate to a four-inch square, four-inch octagon or double-gang junction box. The two-wire mounting plate attaches to a single-gang junction box.
Main Features
Same mounting plate for wall- and ceiling mount units
Shorting spring on mounting plate for continuity check before installation
Captive mounting screw
Tamper-resistance capability
Field-selectable candela settings on wall and ceiling units: 15, 15/75, 30, 75, 95, 110, 115, 135, 150, 177, and 185
Automatic selection of 12 or 24V operation at 15 and 15/75 candela
Rated from –40 and 151 °F (–40 and 66 °C).
Rain-proof per UL50 (NEMA 3R) and weatherproof per NEMA 4X, IP56
Minimal intrusion into the backbox
Horn rated at 88+ dBA at 16V
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
